STEEL TUBULAR POLES as per IS: 2713/ 80 ( PART I & II ) as well as International Standards.
Premier own pipe plant ensure uninterrupted supply of high quality raw material for the poles and delivers both Galvanized and Painted Poles manufactured in accordance with IS : 2713 or any other International specification required by the customer.
| DESIGNATION | OVERALL LENGTH | PLANTING DEPTH | LENGTH OF SECTIONS | OUTSIDE DIAMETER AND THICKNESS OF SECTIONS | APPROX WEIGHT OF POLE | BREAKING LOAD | LOAD FOR PERMANENT SET NOT EXCEEDING 13MM | LOAD FOR TEMPORARY DEFLECTION OF 157.5 MM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | BOTTOM h3 |
MIDDLE h2 |
TOP h1 |
BOTTOM | MIDDLE | TOP | |||||||||||
| (1) | (2) (M) |
(3) (M) |
(4) (M) |
(5) (M) |
(6) (M) |
(7) (MM) |
(8) (MM) |
(9) (MM) |
(10) (KG.) |
(11) N (KGF) |
(12) N (KGF) |
(13) N (KGF) |
|||||
| 410 SP - 1 | 7.00 | 1.25 | 4.00 | 1.50 | 1.50 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 62 | 2570 (262) | 1245 (127) | 785 (80) | |||||
| 410 SP - 2 | 7.00 | 1.25 | 4.00 | 1.50 | 1.50 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 73 | 3100 (316) | 1510 (154) | 941 (96) | |||||
| 410 SP - 3 | 7.00 | 1.25 | 4.00 | 1.50 | 1.50 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 85 | 3630 (370) | 1760 (180) | 1090 (111) | |||||
| 410 SP - 4 | 7.50 | 1.25 | 4.50 | 1.50 | 1.50 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 67 | 2350 (240) | 1150 (117) | 627 (64) | |||||
| 410 SP - 5 | 7.50 | 1.25 | 4.50 | 1.50 | 1.50 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 79 | 2760 (281) | 1340 (137) | 745 (76) | |||||
| 410 SP - 6 | 7.50 | 1.25 | 4.50 | 1.50 | 1.50 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 93 | 3320 (339) | 1620 (165) | 873 (89) | |||||
| 410 SP - 7 | 7.50 | 1.25 | 4.50 | 1.50 | 1.50 | 139.7X4.50 | 114.3X3.65 | 88.9X3.25 | 97 | 4330 (442) | 2110 (215) | 1400 (143) | |||||
| 410 SP - 8 | 7.50 | 1.25 | 4.50 | 1.50 | 1.50 | 139.7X4.85 | 114.3X3.65 | 88.9X3.25 | 103 | 4630 (472) | 2250 (229) | 1480 (151) | |||||
| 410 SP - 9 | 7.50 | 1.25 | 4.50 | 1.50 | 1.50 | 139.7X5.40 | 114.3X3.65 | 88.9X3.25 | 110 | 5100 (520) | 2480 (253) | 1600 (163) | |||||
| 410 SP - 10 | 8.00 | 1.50 | 4.50 | 1.75 | 1.75 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 70 | 2260 (230) | 1100 (112) | 520 (53) | |||||
| 410 SP - 11 | 8.00 | 1.50 | 4.50 | 1.75 | 1.75 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 83 | 2730 (278) | 1320 (135) | 618 (63) | |||||
| 410 SP - 12 | 8.00 | 1.50 | 4.50 | 1.75 | 1.75 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 97 | 3190 (325) | 1550 (158) | 725 (74) | |||||
| 410 SP - 13 | 8.00 | 1.50 | 4.50 | 1.75 | 1.75 | 139.7X4.50 | 114.3X3.65 | 88.9X3.25 | 101 | 4160 (424) | 2020 (206) | 1180 (120) | |||||
| 410 SP - 14 | 8.00 | 1.50 | 4.50 | 1.75 | 1.75 | 139.7X4.85 | 114.3X4.50 | 88.9X3.25 | 111 | 4440 (453) | 2160 (220) | 1280 (131) | |||||
| 410 SP - 15 | 8.00 | 1.50 | 4.50 | 1.75 | 1.75 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 119 | 4890 (499) | 2380 (243) | 1380 (140) | |||||
| 410 SP - 16 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 75 | 2090 (213) | 1020 (104) | 432 (44) | |||||
| 410 SP - 17 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 89 | 2520 (257) | 1230 (125) | 510 (52) | |||||
| 410 SP - 18 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 104 | 2950 (301) | 1430 (146) | 598 (61) | |||||
| 410 SP - 19 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 139.7X4.50 | 114.3X3.65 | 88.9X3.25 | 109 | 3844 (392) | 1800 (191) | 961 (98) | |||||
| 410 SP - 20 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 139.7X4.85 | 114.3X3.65 | 88.9X3.25 | 115 | 4110 (419) | 2000 (204) | 1010 (103) | |||||
| 410 SP - 21 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 129 | 4530 (462) | 2210 (225) | 1130 (115) | |||||
| 410 SP - 22 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 165.1X4.50 | 139.7X4.50 | 114.3X3.65 | 141 | 5450 (556) | 2650 (270) | 1730 (176) | |||||
| 410 SP - 23 | 8.50 | 1.50 | 5.00 | 1.75 | 1.75 | 165.1X4.85 | 139.7X4.50 | 114.3X3.65 | 148 | 5840 (596) | 2840 (29 |
|
|||||
| DESIGNATION | OVERALL LENGTH | PLANTING DEPTH | LENGTH OF SECTIONS | OUTSIDE DIAMETER AND THICKNESS OF SECTIONS | APPROX WEIGHT OF POLE | BREAKING LOAD | LOAD FOR PERMANENT SET NOT EXCEEDING 13MM | LOAD FOR TEMPORARY DEFLECTION OF 157.5 MM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | BOTTOM h3 |
MIDDLE h2 |
TOP h1 |
BOTTOM | MIDDLE | TOP | |||||||||||
| (1) | (2) (M) |
(3) (M) |
(4) (M) |
(5) (M) |
(6) (M) |
(7) (MM) |
(8) (MM) |
(9) (MM) |
(10) (KG.) |
(11) N (KGF) |
(12) N (KGF) |
(13) N (KGF) |
|||||
| 410 SP - 41 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 139.7x4.85 | 114.3x4.50 | 88.9x3.25 | 135 | 3630 (370) | 1760 (180) | 637 (65) | |||||
| 410 SP - 42 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 139.7x5.40 | 114.3x4.50 | 88.9x3.25 | 144 | 3990 (407) | 1940 (198) | 677 (69) | |||||
| 410 SP - 43 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 165.1x4.50 | 139.7x4.50 | 114.3x3.65 | 160 | 4810 (490) | 2330 (238) | 1060 (108) | |||||
| 410 SP - 44 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 165.1x4.85 | 139.7x4.50 | 114.3x3.65 | 168 | 5150 (525) | 2500 (255) | 1120 (114) | |||||
| 410 SP - 45 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 165.1x5.40 | 139.7x4.50 | 114.3x3.65 | 178 | 5690 (580) | 2760 (282) | 1200 (122) | |||||
| 410 SP - 46 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 193.7x4.85 | 165.1x4.50 | 139.7x4.50 | 208 | 7210 (735) | 3500 (357) | 1850 (189) | |||||
| 410 SP - 47 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 193.7x5.40 | 165.1x4.50 | 139.7x4.50 | 221 | 7910 (807) | 3840 (392) | 1990 (203) | |||||
| 410 SP - 48 | 10.00 | 1.80 | 5.20 | 2.40 | 2.40 | 193.7x5.90 | 165.1x4.50 | 139.7x4.50 | 233 | 8620 (879) | 4190 (427) | 2110 (215) | |||||
| 410 SP - 49 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 139.7x4.85 | 114.3x4.50 | 88.9x3.25 | 140 | 3000 (306) | 1460 (149) | 412 (42) | |||||
| 410 SP - 50 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 139.7x5.40 | 114.3x4.50 | 88.9x3.25 | 147 | 3210 (327) | 1560 (159) | 431 (44) | |||||
| 410 SP - 51 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 139.7x5.40 | 114.3x5.40 | 88.9x3.25 | 164 | 3530 (360) | 1720 (175) | 480 (49) | |||||
| 410 SP - 52 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 165.1x4.50 | 139.7x4.50 | 114.3x3.65 | 175 | 4250 (433) | 2060 (210) | 726 (74) | |||||
| 410 SP - 53 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 165.1x4.85 | 139.7x4.50 | 114.3x3.65 | 183 | 4550 (464) | 2220 (226) | 765 (78) | |||||
| 410 SP - 54 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 165.1x5.40 | 139.7x4.50 | 114.3x3.65 | 194 | 5030 (513) | 2440 (249) | 814 (83) | |||||
| 410 SP - 55 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 193.7x4.85 | 165.1x4.50 | 139.7x4.50 | 227 | 6370 (650) | 3100 (316) | 1270 (130) | |||||
| 410 SP - 56 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 193.7x5.40 | 165.1x4.50 | 139.7x4.50 | 241 | 6990 (713) | 3400 (347) | 1370 (140) | |||||
| 410 SP - 57 | 11.00 | 1.80 | 5.60 | 2.70 | 2.70 | 193.7x5.90 | 165.1x4.85 | 139.7x4.50 | 256 | 7620 (777) | 3710 (378) | 1470 (150) | |||||
| 410 SP - 58 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 165.1x4.50 | 139.7x4.50 | 114.3x3.65 | 186 | 3880 (396) | 1880 (192) | 539 (55) | |||||
| 410 SP - 59 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 165.1x4.85 | 139.7x4.50 | 114.3x3.65 | 197 | 4160 (424) | 2020 (206) | 569 (58) | |||||
| 410 SP - 60 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 165.1x5.40 | 139.7x4.50 | 114.3x3.65 | 208 | 4600 (469) | 2240 (228) | 598 (61) | |||||
| 410 SP - 61 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 193.7x4.85 | 165.1x4.50 | 139.7x4.50 | 245 | 5820 (594) | 2830 (289) | 951 (97) | |||||
| 410 SP - 62 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 193.7x5.40 | 165.1x4.50 | 139.7x4.50 | 259 | 6390 (652) | 3110 (317) | 1010 (103) | |||||
| 410 SP - 63 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 193.7x5.90 | 165.1x4.85 | 139.7x4.50 | 277 | 6960 (710) | 3390 (345) | 1090 (111) | |||||
| 410 SP - 64 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 219.1x4.85 | 193.7x4.85 | 165.1x4.50 | 292 | 7490 (764) | 3640 (371) | 1460 (149) | |||||
| 410 SP - 65 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 219.1x5.60 | 193.7x4.85 | 165.1x4.50 | 313 | 8530 (871) | 4150 (423) | 1610 (164) | |||||
| 410 SP - 66 | 12.00 | 2.00 | 5.80 | 3.10 | 3.10 | 219.1x5.90 | 193.7x4.85 | 165.1x4.50 | 322 | 8980 (916) | 4360 (445) | 1660 (169) | |||||
| 410 SP - 67 | 13.00 | 2.00 | 5.80 | 3.60 | 3.60 | 193.7x4.85 | 165.1x4.50 | 139.7x4.50 | 261 | 5270 (537) | 2560 (261) | 677 (69) | |||||
| 410 SP - 68 | 13.00 | 2.00 | 5.80 | 3.60 | 3.60 | 193.7x5.40 | 165.1x4.85 | 139.7x4.50 | 281 | 5790 (590) | 2810 (287) | 735 (75) | |||||
| 410 SP - 69 | 13.00 | 2.00 | 5.80 | 3.60 | 3.60 | 193.7x5.90 | 165.1x5.40 | 139.7x4.50 | 302 | 6300 (642) | 3060 (312) | 794 (81) | |||||
| 410 SP - 70 | 13.00 | 2.00 | 5.80 | 3.60 | 3.60 | 219.1x4.85 | 193.7x4.85 | 165.1x4.50 | 312 | 6780 (691) | 3300 (336) | 1060 (108) | |||||
| 410 SP - 71 | 13.00 | 2.00 | 5.80 | 3.60 | 3.60 | 219.1x5.60 | 193.7x4.85 | 165.1x4.50 | 333 | 7720 (787) | 3750 (382) | 1160 (118) | |||||
| 410 SP - 72 | 13.00 | 2.00 | 5.80 | 3.60 | 3.60 | 219.1x5.90 | 193.7x4.85 | 165.1x4.50 | 343 | 8120 (828) | 3940 (402) | 1190 (121) | |||||
| 410 SP - 73 | 14.50 | 2.00 | 6.50 | 4.00 | 4.00 | 193.7x5.40 | 165.1x5.40 | 139.7x4.50 | 341 | 5050 (515) | 2450 (250) | 500 (51) | |||||
| 410 SP - 74 | 14.50 | 2.00 | 6.50 | 4.00 | 4.00 | 193.7x5.90 | 193.7x4.85 | 139.7x4.50 | 367 | 5500 (561) | 2680 (273) | 539 (55) | |||||
| 410 SP - 75 | 14.50 | 2.00 | 6.50 | 4.00 | 4.00 | 219.1x5.60 | 193.7x4.85 | 165.1x4.50 | 405 | 6750 (688) | 3780 (334) | 775 (79) | |||||
| 410 SP - 76 | 14.50 | 2.00 | 6.50 | 4.00 | 4.00 | 219.1x5.90 | 193.7x4.85 | 165.1x4.50 | 416 | 7100 (724) | 3450 (352) | 794 (81) | |||||
| 410 SP - 77 | 16.00 | 2.30 | 7.00 | 4.50 | 4.50 | 193.7x5.40 | 165.1x5.40 | 139.7x4.50 | 153 | 4590 (468) | 2230 (227) | 363 (37) | |||||
| 410 SP - 78 | 16.00 | 2.30 | 7.00 | 4.50 | 4.50 | 193.7x5.90 | 193.7x4.85 | 139.7x4.50 | 160 | 5000 (510) | 2430 (248) | 392 (40) | |||||
| 410 SP - 79 | 16.00 | 2.30 | 7.00 | 4.50 | 4.50 | 219.1x5.60 | 193.7x4.85 | 165.1x4.50 | 170 | 6130 (625) | 2980 (304) | 569 (58) | |||||
| 410 SP - 80 | 16.00 | 2.30 | 7.00 | 4.50 | 4.50 | 219.1x5.60 | 193.7x4.85 | 165.1x4.50 | 170 | 6440 (657) | 3130 (319) | 588 (60) | |||||

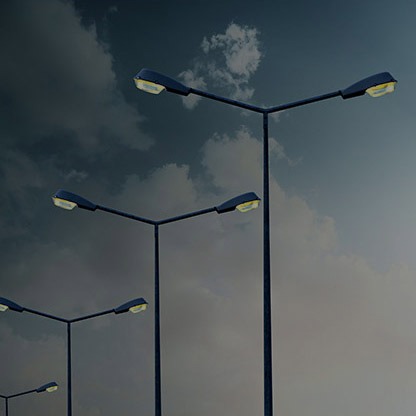

Poles are the backbone of efficient street lighting applications and urban city beautification projects.
The range comprises fixed tubular poles, used typically for general CCTV applications; lamp standard poles that fit in with existing street furniture, but are heavy duty and designed specifically for CCTV camera mounting and dual lighting and CCTV applications; tilt down tubular poles suitable for public areas, providing the facility to service camera equipment at ground level and tapered tubular poles, that offer an aesthetic appearance to fit in with architectural themes
