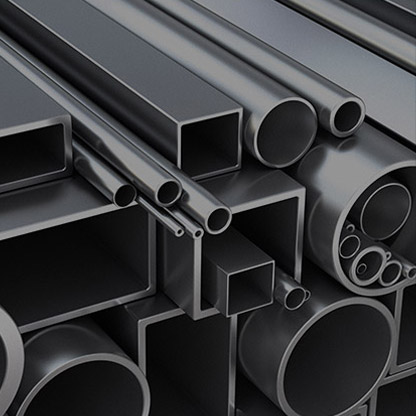

ERW Electric Resistance Welded (ERW) pipes and tubes are used in various engineering purposes, fencing, scaffolding, line pipes etc.
With an installed Annual capacity of 1.20 Lakh PMT Premier’s pipe plant is equipped with state-of-the-art machines, slitting lines, pipe mills, galvanizing units, finishing machines and failsafe, high pressure hydro testing machines. The plant also has sufficient handling facilities and is backed by most modern technology to manufacture ERW/BLACK/GI & Hollow sections from 15mm to 200 mm.
All our Products adhere to various Indian and international standards having BIS License No.CM/L-2154441as per IS:1239 & CM/L-2197863 as per IS:1161 Premier Pipes has recently introduced Hollow section Structure (SHS) with IS : 4923 : 1997/EN 10219-1 : 2006*/ASTM A-500 standard And Structure (RHS) IS : 4923 : 1997/EN 10219-1 : 2006**/ASTM A-500 standard
| Nominal Bore & Series | Outside Diameter | Wall Thickness in mm |
Normal mass of Steel Tubes | Sockets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plain End | Screwed & Socketed | Min O.D. mm | Min Length mm |
|||||||||
| mm | Inches | Max mm | Min mm | |||||||||
| Kg/m | Mtrs / tonne |
Kg/m | Mtrs / tonne |
|||||||||
| 15L | 0.50 | 21.4 | 21.0 | 2.0 | 0.947 | 1056 | 0.956 | 1046 | 27.0 | 37.0 | ||
| 15M | 0.50 | 21.8 | 21.0 | 2.6 | 1.21 | 826 | 1.22 | 820 | 27.0 | 37.0 | ||
| 15H | 0.50 | 21.8 | 21.0 | 3.2 | 1.44 | 694 | 1.45 | 690 | 27.0 | 37.0 | ||
| 20L | 0.75 | 26.9 | 26.4 | 2.3 | 1.38 | 725 | 1.39 | 719 | 32.5 | 39.0 | ||
| 20M | 0.75 | 27.3 | 26.5 | 2.6 | 1.56 | 641 | 1.57 | 637 | 32.5 | 39.0 | ||
| 20H | 0.75 | 27.3 | 26.5 | 3.2 | 1.87 | 535 | 1.88 | 532 | 32.5 | 39.0 | ||
| 25L | 1.00 | 33.8 | 33.2 | 2.6 | 1.98 | 505 | 2.00 | 500 | 39.5 | 46.0 | ||
| 25M | 1.00 | 34.2 | 33.3 | 3.2 | 2.41 | 415 | 2.43 | 412 | 39.5 | 46.0 | ||
| 25H | 1.00 | 34.2 | 33.3 | 4.0 | 2.93 | 341 | 2.95 | 339 | 39.5 | 46.0 | ||
| 32L | 1.25 | 42.5 | 41.9 | 2.6 | 2.54 | 394 | 2.57 | 389 | 49.0 | 51.0 | ||
| 32M | 1.25 | 42.9 | 42.0 | 3.2 | 3.10 | 323 | 3.13 | 319 | 49.0 | 51.0 | ||
| 32H | 1.25 | 42.9 | 42.0 | 4.0 | 3.79 | 264 | 3.82 | 262 | 49.0 | 51.0 | ||
| 40L | 1.50 | 48.4 | 47.8 | 2.9 | 3.23 | 310 | 3.27 | 306 | 56.0 | 51.0 | ||
| 40M | 1.50 | 48.8 | 47.9 | 3.2 | 3.56 | 281 | 3.60 | 278 | 56.0 | 51.0 | ||
| 40H | 1.50 | 48.8 | 47.9 | 4.0 | 4.37 | 229 | 4.41 | 227 | 56.0 | 51.0 | ||
| 50L | 2.00 | 60.2 | 59.6 | 2.9 | 4.08 | 245 | 4.15 | 241 | 68.0 | 60.0 | ||
| 50M | 2.00 | 60.8 | 59.7 | 3.6 | 5.03 | 199 | 5.10 | 196 | 68.0 | 60.0 | ||
| 50H | 2.00 | 60.8 | 59.7 | 4.5 | 6.19 | 162 | 6.26 | 160 | 68.0 | 60.0 | ||
| 65L | 2.50 | 76.0 | 75.2 | 3.2 | 5.17 | 175 | 5.83 | 172 | 84.0 | 69.0 | ||
| 65M | 2.50 | 76.6 | 75.3 | 3.6 | 6.42 | 156 | 6.54 | 153 | 84.0 | 69.0 | ||
| 65H | 2.50 | 76.6 | 75.3 | 4.5 | 7.93 | 126 | 8.05 | 124 | 84.0 | 69.0 | ||
| 80L | 3.00 | 88.7 | 87.9 | 3.2 | 6.72 | 149 | 6.89 | 145 | 98.0 | 75.0 | ||
| 80M | 3.00 | 89.5 | 88.0 | 4.0 | 8.36 | 120 | 8.53 | 117 | 98.0 | 75.0 | ||
| 80H | 3.00 | 89.5 | 88.0 | 4.8 | 9.90 | 101 | 10.40 | 96 | 98.0 | 75.0 | ||
| 100L | 4.00 | 113.9 | 113.0 | 3.6 | 9.75 | 103 | 10.00 | 100 | 124.0 | 87.0 | ||
| 100M | 4.00 | 115.0 | 113.1 | 4.5 | 12.20 | 82 | 12.50 | 80 | 124.0 | 87.0 | ||
| 100H | 4.00 | 115.0 | 113.1 | 5.4 | 14.50 | 69 | 14.80 | 68 | 124.0 | 87.0 | ||
| 125M | 5.00 | 140.8 | 138.5 | 4.8 | 15.90 | 63 | 16.40 | 61 | 151.0 | 96.0 | ||
| 125H | 5.00 | 140.8 | 138.5 | 5.4 | 17.90 | 56 | 18.40 | 54 | 151.0 | 96.0 | ||
| 150M | 6.00 | 166.5 | 163.9 | 4.8 | 18.90 | 53 | 19.5 | 51 | 178.0 | 96.0 | ||
| 150H | 6.00 | 166.5 | 163.9 | 5.4 | 21.30 | 47 | 21.90 | 46 | 178.0 | 96.0 | ||
