Solar module mounting structures

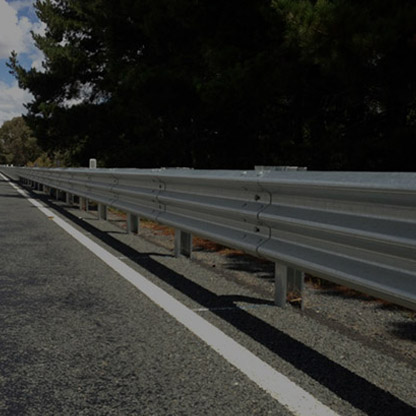

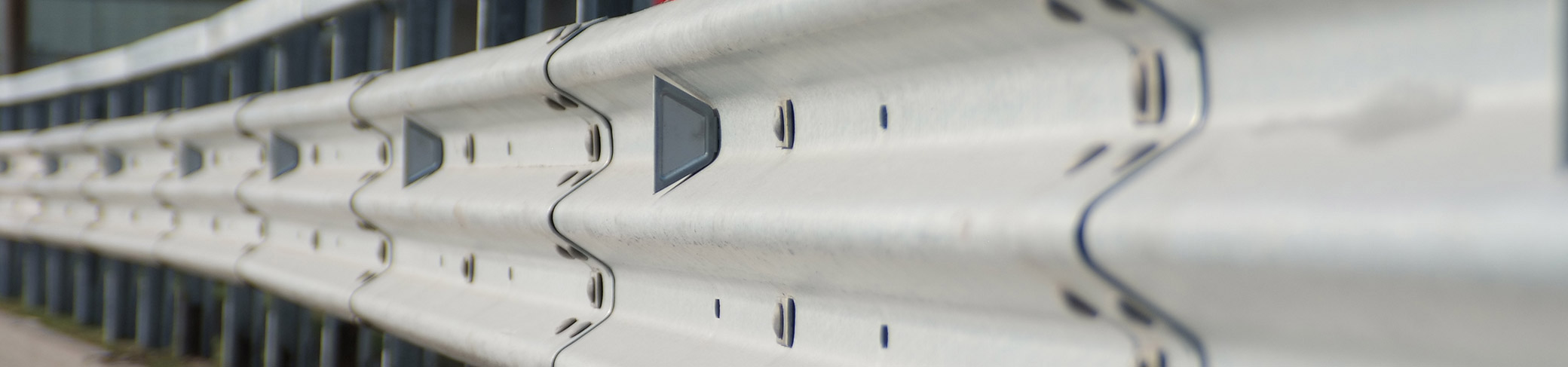

A Metal Crash Barriers is an effective road safety system serving to protect vehicles and its occupants in the case of a mishap and also serve as a good visual guide for drivers, especially in the night.It is also being widely used across median & separator on 4/6 lane highways.

Based on the guidelines issued by Ministry of Road Transport & Highways (MORTH) and other international specifications like AASHTO M180 & EURO EN1317-1 & 2, we are manufacturing “W" beam and "Thrie" beam type steel crash barrier systems.

  • Cost- effective, easy to install and easy to repair
  • End- to- end solutions - from manufacturing to commissioning
  • Cold Roll formed
  • Customized for individual project’s requirements.
  • Hot dip galvanized for longer life
  • Available in different lengths and thickness to match customer requirements

Standard Dimensions Of Sections Are Given Below:

Section Length (mm) Width (mm) Thickness (mm)
W Beam 4318 312 3/2.67
Post 150 75 5/4.2
Spacer 150 75 5/4.2
  • All the above are cold rolled formed steel sections and hot dip galvanized to 550 gms/sq.m
  • Raw material conforming to IS 5986 Grade Fe 360/Fe 410, IS 10748 Grade II or equivalent
  • Fish tail beams and base plates are supplied as per customers' requirements.

Metal Crash Barriers Are Widely Being Used As Security Mechanism For Flyover Projects, Bridges, National Highway Projects And Several Others, Such As

  • Restraining Barriers On Embankments Of Expressways & Highways
  • Containment Barriers On Medians And Grade Separators On Four/Six Lane Roads
  • Protection Barriers/Containment Barriers For Hilly Terrains And Ghat Roads.
  • Race Car Crash Guards On Car Racing Tracks
  • Interior Traffic Safety At Airports, Plants Handling Hazardous Chemicals, Mines, Collieries, Etc
  • Fencing Barriers For Country Borderlines, Expanse Lands, Water Bodies, Bridge Piers, Signposts, Rocky Areas, Etc
Cable trays

Premier is one of the leading manufacturer of Cable Management Systems in India, holding a vast experience in conducting research activities based on which we have designed and developed product line to suit the customer's needs. Our experience helps us to contribute in the form of new ideas which will save cost, space and material which in turn make the customer competitive in the market.

We are specialized on Support Systems of various types, Cable Trays and Accessories and Raceways. We have standard products to meet the immediate customer requirements as well as products as per customer requirements.

Key features-
  • Maximum strength for long span applications
  • Thickness available 1.6, 2.0, 2.5, 3.0 mm
  • Standard length of 2.5 Meters.
  • Rung spacing of 250 mm.
  • Material for covers and cover clamps are Pre-galvanized and Powder Coated.
  • Covers for Perforated Cable Trays shall be Pre-galvanized, Powder Coated (Stainless Steel and Aluminum also available).
  • Install quickly using drop in support
  • Support large quantity of network cables & low maintenance

A range of our standard Perforated Cable Trays (no caps) are listed below:

WIDTH (mm) 100 75 50 150 200 300 500 600
HEIGHT(mm) 30 35 35 50 50 50 75 100
THICKNESS(mm) 5 3 3 5 5 5 3 5

The perforated type, solid bottom, pre-drilled cable tray are designed for light loads namely instrumentation and control cables and for transition from cable trays to individuals control points. Uniformly Distributed Load (UDL) bearing capabilities in kg/meter are given in below table.

WIDTH (mm) ULD in KG/Meter SPAN (mm)
50 10 1000
75 15 1000
100 20 1000

Some range of our standard Perforated Cable Trays are as listed in the below table:

WIDTH(mm) 150 150 300 300 500 500 600 600 900 900 1000 1500
HEIGHT(mm) 100 75 100 75 100 75 100 75 100 150 150 150
THKICKNESS(mm) 5 3 5 3 5 3 5 3 5 5 5 5

Metal Crash Barriers Are Widely Being Used As Security Mechanism For Flyover Projects, Bridges, National Highway Projects And Several Others, Such As

  • Ladder and ventilated trays may have solid covers to protect cables from falling objects, dust, and water.
  • Lighter cable trays are more appropriate in situations where a great number of small cables are used, such as for telephone or computer network cables.
  • Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.
  • cable tray system is used to support insulated electric cables used for power distribution and communication.
